232P Series, NEMA 4 & 13 Pressure Switch/Internal Adjustment

• Compact, adjustable pressure switch for high pressure hydraulic process applications. Efficient Nega-Rate® Belleville disc spring for set point stability and vibration resistance.
• Electrical: Snap action electrical switch recognized by Underwriters Laboratories, Inc. and CSA International
• Electrical Connection: 1/2 NPT male conduit connection with PVC insulated 18 AWG, 18″ long leads
• Pressure Connection: 1/4 NPT Female
• Temperature Range:*
  Ambient: -40°F to +180°F (-40°C to +82°C)
  Media: -40°F to +300°F (-40°C to +149°C)
  *Temperature limits change with O-Ring selection
• Adjustment: Internal, slotted adjustment nut with range scale
  Shipping Weight: 5 pounds
• The 232P series has an adjustable switch for high pressure hydraulic process applications. Set point stability and vibration resistance. Enclosure 3.

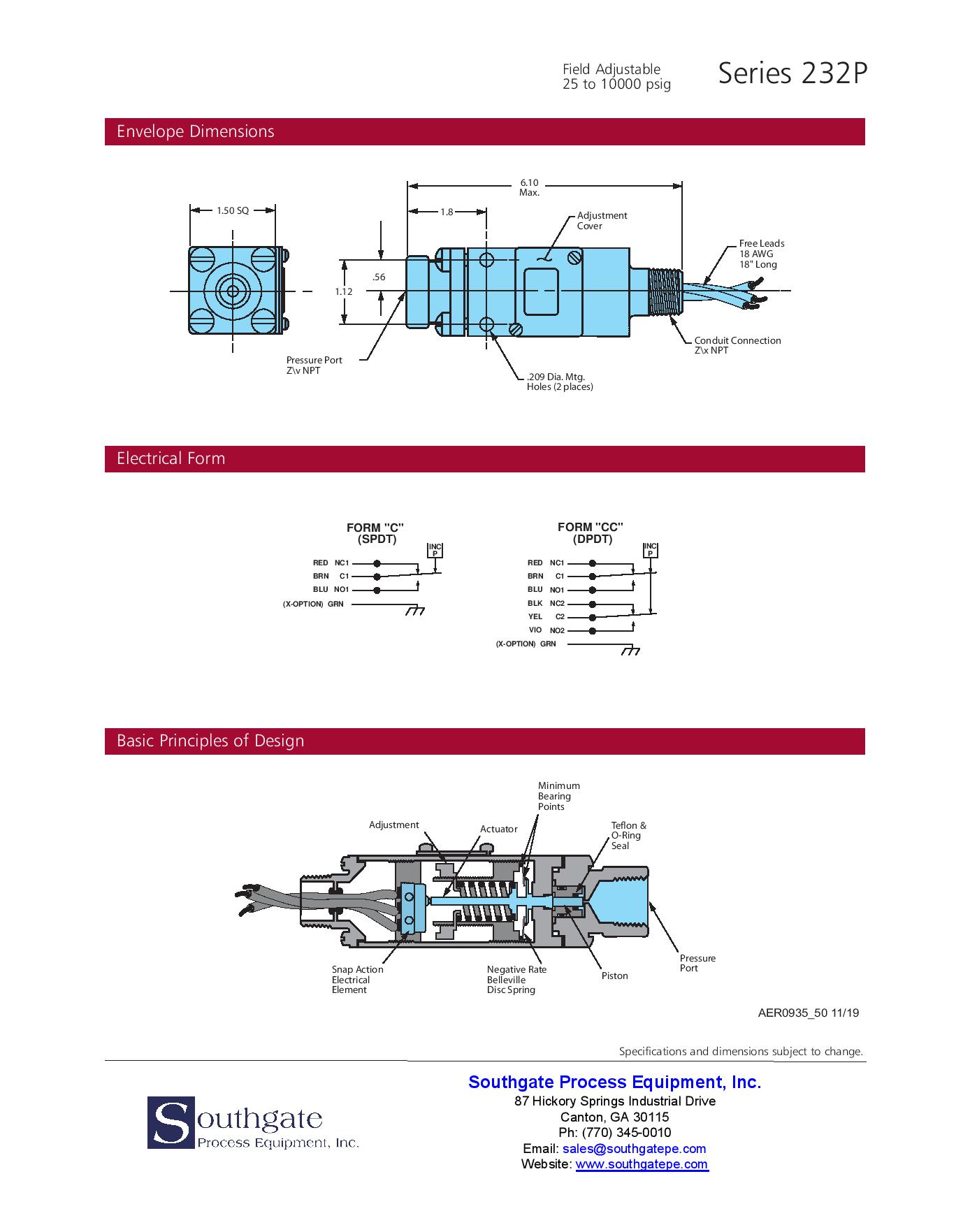

ITT Neo-Dyn 232P General Data Sheets

Click here for downloadable brochure
