101P Series, NEMA 4 & 13 Pressure Switch/External Adjustment

• Versatile Nega-Rate® Belleville disc spring pressure switch for a wide range of applications. Series 101P (diaphragm sensor) for pneumatic and low impulse hydraulics up to 3000 psig system pressure.
• Electrical: Snap action electrical switch recognized by Underwriters Laboratories, Inc. and CSA International
• Electrical Connection: 1/2 NPT female conduit connection with terminal block
• Pressure Connections:
  Wetted Material (1), 1/4 NPT Female
  Wetted Material (4), 1/2 NPT Female
• Temperature Range:*
  Ambient: -40°F to +180°F (-40°C to +82°C)
  Media: -40°F to +300°F (-40°C to +149°C)
  *Temperature limits change with O-Ring
• Adjustment: External screwdriver slot adjustment and range scale
• Shipping Weight: Approximately 3 pounds
• The 101P series (diaphragm sensor) is for pneumatic and low impulse hydraulics up to 3,000 psig. Enclosure 3.

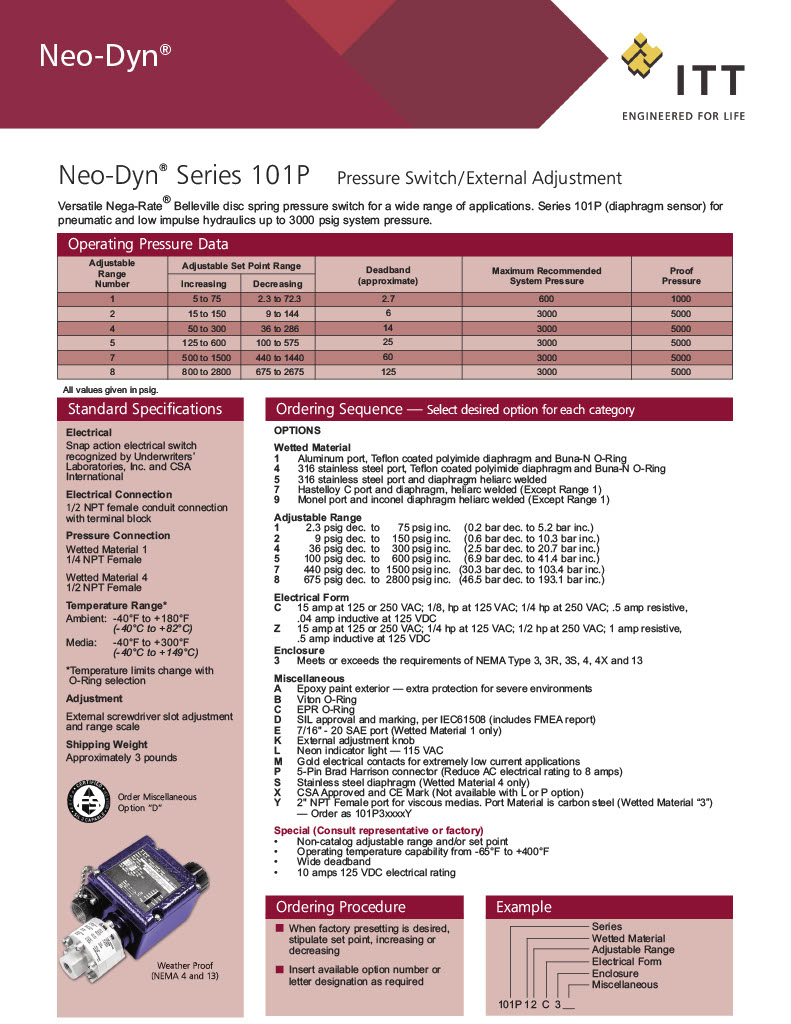

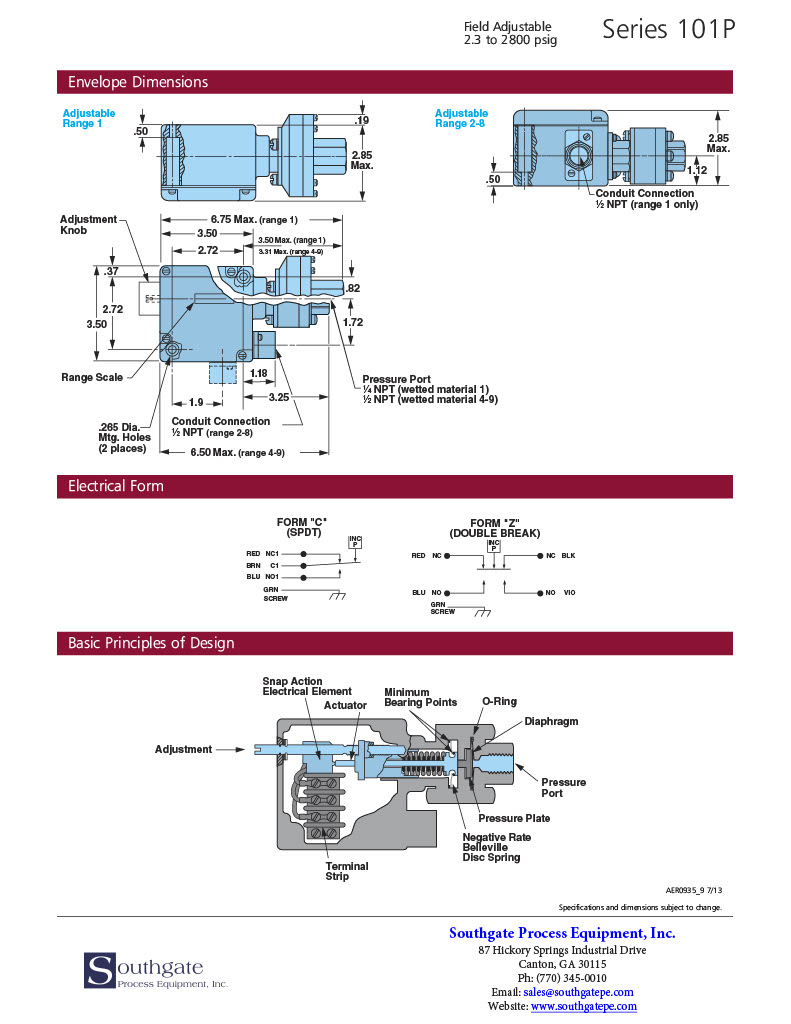

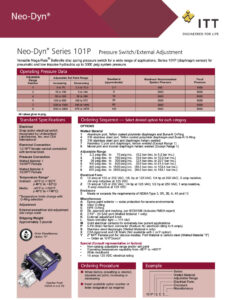

ITT Neo-Dyn 101P General Data Sheets

Click here for downloadable brochure
